xCELLigence RTCA HT-BioTek BioSpa8, Scientists’ Choice Awards 2024 Winner

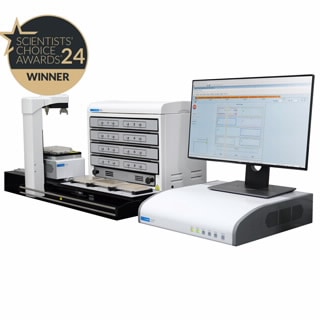

xCELLigence RTCA HT-BioTek BioSpa8 – Screening Model
Integration of the Agilent xCELLigence Real Time Cell Analyzer (RTCA) HT instrument with the Agilent BioTek BioSpa 8 automated incubator expands the screening throughput of your xCELLigence RTCA HT instrument to up to eight 384-well E-Plates. Label-free high-throughput xCELLigence Real-Time Cell Analysis is ideal for screening viral mediated cytopathic effects (CPE), neutralizing antibodies, antibody-dependent cytotoxicity (ADCC), and compound mediated cytotoxicity.
xCELLigence Real-Time Cell Analysis uses impedance-based biosensors to continuously obtain non-invasive, label-free data on cell health, behavior, and function with high accuracy, sensitivity, and reproducibility. Integrating the BioSpa 8 Automated Incubator with the xCELLigence RTCA HT model enables live-cell analysis of up to 3,072 wells to meet high throughput sample screening needs.
xCELLigence Real-Time Cell Analysis uses impedance-based biosensors to continuously obtain non-invasive, label-free data on cell health, behavior, and function with high accuracy, sensitivity, and reproducibility. Integrating the BioSpa 8 Automated Incubator with the xCELLigence RTCA HT model enables live-cell analysis of up to 3,072 wells to meet high throughput sample screening needs.
Download the product brochure using the DOWNLOADS button above, or request more information about the xCELLigence RTCA HT-BioTek BioSpa8 – Screening Model
Product Details
Features
- The xCELLigence RTCA HT instrument with BioTek BioSpa 8 automated incubator enables live cell analysis up to eight 384-well E-plates (a total of 3,072 wells) with non-invasive and label-free real-time impedance technology
- Kinetic measurement of cell health, viability, or response to treatments with high sensitivity, accuracy, and reproducibility, provides a continuous flow of real-time data. The information gained from real-time live cell analysis goes far beyond end-point measurements

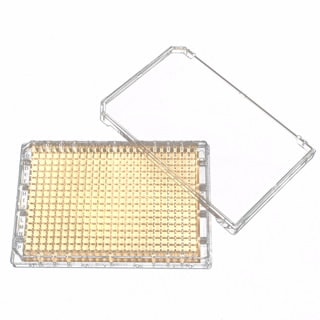

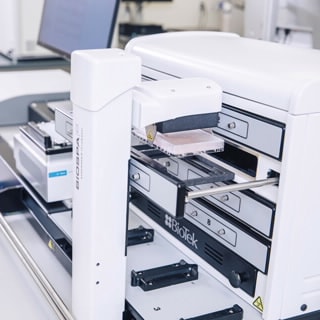

- Automated workflow allows users to simply add cells to E-Plates 384 and begin kinetic measurements at physiological conditions. The BioSpa8 Robotic Arm transfers E-Plate 384 from the incubator to the xCELLigence RTCA HT Station. Multiple E-Plates 384 are processed while unattended, saving time and hands-on labor in the lab
- Critical physiological conditions are controlled and maintained in the BioSpa8 incubator to ensure assay success. Temperature and CO2/O2 control, plus humidity monitoring in the BioSpa facilitate live cell processes, and the cradle of the RTCA HT unit is temperature-controlled, for minimal disruption of the cells
- Small footprint saves benchtop space?
- User-friendly RTCA Software Pro HT-BioSpa enables simple assay setup and scheduling for both single and multiple users, real-time data visualization, and powerful data analysis for immunotherapy and virology applications
- Ideal for high throughput screening of therapeutic antibodies, drug compounds, and cytotoxicity

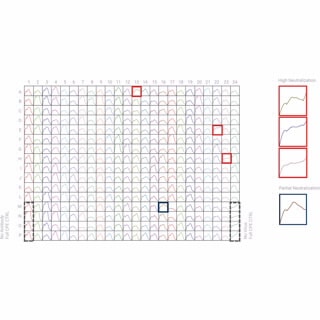

- Typical applications include Compound-mediated cytotoxicity assay; Viral-mediated cytopathic effect (CPE); Neutralizing antibody screening; Antiviral drug screening; Immune cell potency assay; Antibody-dependent cell-mediated cytotoxicity (ADCC) assays
